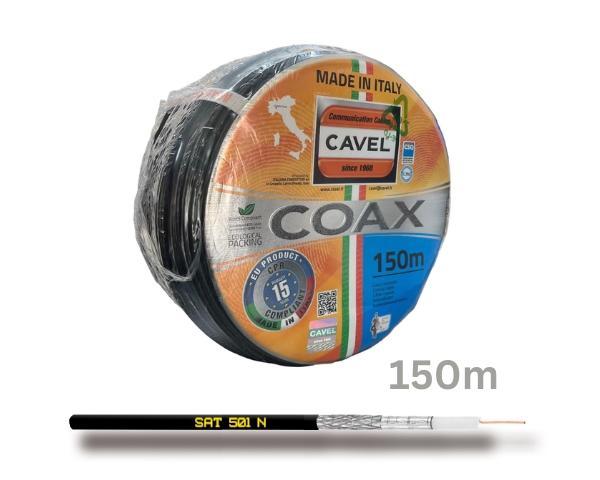

CAVEL SAT501N 150m Coaxial Cable Black RG59

$ 66.15
Category:
  • Double Shielded Coaxial Connection Cable for Wide Band – 75 Ohm SAT501N The CAVEL SAT501N RG59 Coaxial Cable is a professional-grade 75Ω cable designed for CCTV, analogue video, RF distribution, and signal transmission applications. Featuring a solid copper conductor, tinned copper braid shielding, and low attenuation characteristics, it ensures reliable signal performance over long cable runs. Its compact 5mm diameter provides excellent flexibility for installations, while the CPR Eca-rated PVC jacket makes it suitable for indoor professional and residential installations. The cable can be used in the field of application of the Construction Product Regulation (DoP) UE nr. 305/2011 for the class of performance specified on the related product label.   Technical Details Cable Type: RG59 Coaxial Cable Model: CAVEL SAT501N Length: 150m Color: Black Application: Indoor Installation CPR Class: Eca Standards: EN50117-9-2, CEI-UNEL 36762, EN50575 Construction Inner Conductor Diameter: 0.80mm Inner Conductor Material: Copper (Cu) Dielectric Diameter: 3.50mm Dielectric Material: PEG Foil Shield: APA Laminated Foil Braid Material: Tinned Copper (CuSn) Braid Coverage: 47% Diameter Over Braid: 4.00mm Outer Diameter: 5.00mm Outer Jacket Material: PVC Physical Characteristics Copper Content: 8.9kg/km Cable Weight: 23.9kg/km Minimum Bending Radius: 25mm (installation), 50mm (operation) Maximum Tensile Strength: 90N Electrical Characteristics Impedance: 75Ω ±3Ω @ 200MHz Capacitance: 52 ±2 pF/m @ 1kHz Velocity Ratio: 85% DC Resistance (Inner/Outer): 35Ω/km / 26Ω/km Loop Resistance: 61Ω/km Maximum Current: 4A Spark Test Voltage: 2.5kV Attenuation 5 MHz: 2.1 dB/100m 10 MHz: 2.8 dB/100m 30 MHz: 4.6 dB/100m 50 MHz: 5.6 dB/100m 200 MHz: 10.9 dB/100m 300 MHz: 13.7 dB/100m 470 MHz: 17.4 dB/100m 690 MHz: 20.8 dB/100m 1000 MHz: 25.6 dB/100m 1750 MHz: 35.0 dB/100m 2150 MHz: 38.5 dB/100m 2400 MHz: 40.8 dB/100m 3000 MHz: 46.0 dB/100m Structural Return Loss (SRL) 5–470 MHz: >30 dB 470–1000 MHz: >27 dB 1000–2000 MHz: >27 dB 2000–3000 MHz: >20 dB Transfer Impedance: Class C 5–30 MHz: <23 mΩ/m Screening Attenuation: Class B 30–1000 MHz: >80 dB 1000–2000 MHz: >80 dB 2000–3000 MHz: >75 dB   General: Unit Length: 150m Unit Packing Content: 6x150m= 900m Fits CABLEBOX: DS100 Stripper Compatible: CS00 F connector Compatible: FA501 Twist On
