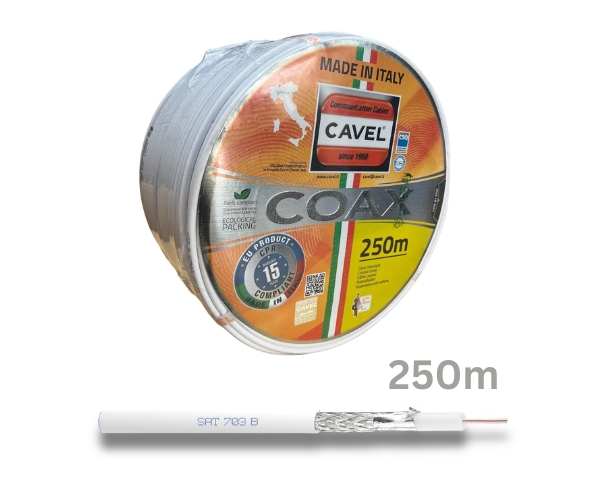

CAVEL SAT703B 250m COAX Cable RG6

$ 96.43
Category:
  • CAVEL Double Shielded Coaxial Drop Cable 75 Ohm for Wide Band. PVC Outer Sheath The cable can be used in the field of application of the Construction Product Regulation (DoP) UE nr. 305/2011 for the class of performance specified on the related product label. CONSTRUCTION DATA Inner Conductor Ø mm 1,13 material Cu Dielectric Ø mm 4,80 material PEG Film Foil Laminate material APA Braid material CuSn Braid Optical Coverage % 45 Diameter over Braid Ø mm 5,30 Outer Sheath Ø mm 6,6 material PVC PHYSICAL DATA Copper Content kg/km 14,4 Cable Weight kg/km 39,5 Min bending radius x 1/n mm 35/70 Max.Tensile Strength N 150 ELECTRICAL DATA Impedance Ohm 75±3@200 MHz Capacitance (@1kHz) pF/m 52 ± 2 Velocity Ratio % 85 Attenuation (at 20°C ) at 5 MHz dB/100m 1,6 at 10 MHz dB/100m 2,1 at 30 MHz dB/100m 3,2 at 50 MHz dB/100m 4,1 at 200 MHz dB/100m 7,9 at 300 MHz dB/100m 9,8 at 470 MHz dB/100m 12,4 at 862 MHz dB/100m 17,1 at 1000 MHz dB/100m 18,5 at 1750 MHz dB/100m 24,9 at 2150 MHz dB/100m 27,9 at 2400 MHz dB/100m 29,6 at 3000 MHz dB/100m 33,4 Structural return loss (SRL) at 5 – 470 MHz dB >30 at 470 – 1000 MHz dB >28 at 1000 – 2000 MHz dB >26 at 2000 – 3000 MHz dB >22 Transfer Impedance (Zt) Class C 5 – 30 MHz mOhm/m < 23 Screening Attenuation (SA) Class B at 30 – 1000 MHz dB > 80 at 1000 – 2000 MHz dB >80 at 2000 – 3000 MHz dB >65 DC Conductor Resistance inner/outer Ohm/km 18,0 / 22,0 Loop resistance Ohm/km 40,0 Sheat Insulation voltage (spark test) kV 3,0 Maximum current (Ieff) A 8
