EDISION CCS-100 COAXIAL Cable CCS 100m

$ 30.77
Category:

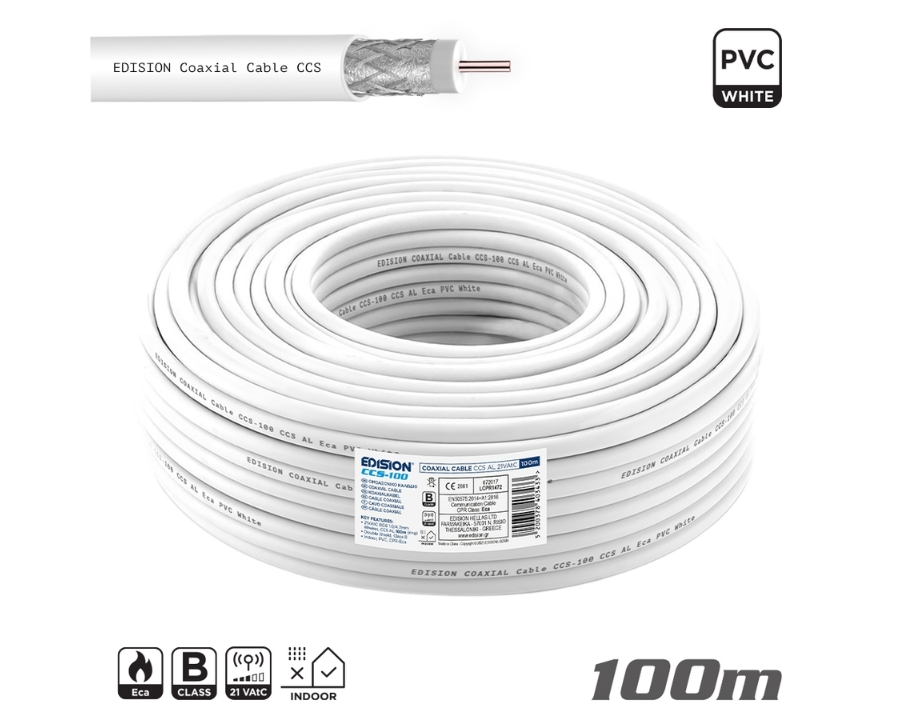

  • EDISION COAXIAL Cable CCS-100 CCS AL Eca PVC White 100m. Indoor RG6 coaxial cable, in a 100-meter coil, for Digital Terrestrial, Cable and Satellite TV signal distribution in small and medium sized installations. Also suitable for CCTV camera signal. Its inner conductor copper-clad steel (CCS), giving it an enhanced mechanical behaviour. Its PVC outer sheath is double shielded Class B with excellent specifications for its class, characterized by good flexibility and a high protection against heat sources. Compatible with all TV and F 6.5mm plugs. Technical features:  Type: Coaxial Cable RG-6, double shielded, 21VAtC indoor CCS-100  Suitable for Terrestrial, Cable TV, Satellite reception and CCTV installations  Class B  CPR Class: Eca  Standards: EN 55075  Inner Conductor: Diameter 1,00 ± 0,02 mm / Material: Copper Clad Steel (CCS)  Foam Dielectric: Diameter 4,7 mm / Material: Polyethylene foam (FPE)  Foil: Aluminum (AL) with coverage 100%  Braid: Aluminum mesh (AL) 6x8x0,12 mm (wires) with coverage 30%  Jacket: Diameter 6,6mm ± 0.10 mm / Material: PVC White  Impedance: 75 Ohm  Minimum Bending Radius: 35mm  Shielding: >75 dB (typ.110dB)  Return Losses 5-862 MHz: >18 dB / 862-2150 MHz: >16 dB   Attenuation dB per 1 meter:  5 MHz / 0,05 dB  30 MHz / 0,06 dB  50 MHz / 0,07 dB  200 MHz / 0,10 dB  400 MHz / 0,15 dB  500 MHz / 0,16 dB  800 MHz / 0,20 dB  860 MHz / 0,21 dB  1000 MHz / 0,22 dB  1350 MHz / 0,25 dB  1750 MHz / 0,28 dB  2050 MHz / 0,31 dB  2150 MHz / 0,32 dB   General: – Environmental Operating Temperature: -30°C … 70°C – Application: Indoor – Length: 100m (marked per 1 meter) – Weight: 3,65 kg – Color: White – Packing: Ring 100m – Packing Quantity: 4 pcs x 100m
