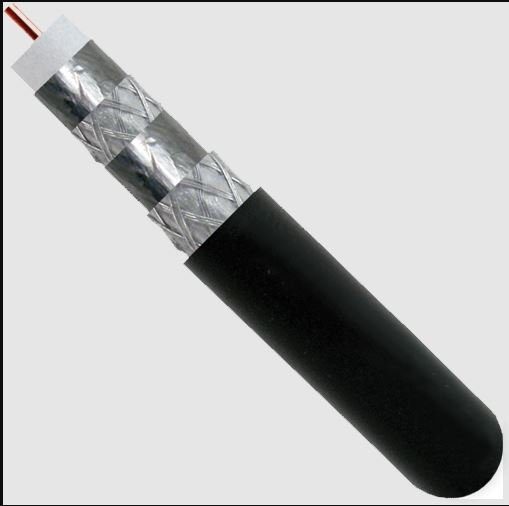

TELEVES 212811 LSFH Dca CU Coaxial Cable 250m

$ 94.52
Category:
  • RG-6 coaxial cable with copper inner conductor and aluminium braid (Cu/Al), and an excellent braid coverage (79%). A 19 AtC cable with double shielded and LSFH (Low Smoke, Free of Halogen) sheath. Highlights Copper inner conductor and aluminium braid Class A shielded Dca-s2,d2,a1 Euroclass Grey-colour external LSFH sheath, for indoor use, recommended for high-traffic environments 75 Ohm characteristic impedance 250 m wood reel Double-shielded Class A coaxial cable With 2 shielding layers, these cables provide an outstanding shielding thanks to a high-coverage braid. They belong in EN 50117 standard Class A, according to their structural properties: For 5 MHz – 30 MHz => TI < 5 mΩ/m For 30 MHz – 1000 MHz => SA > 85 dB For 1000 MHz – 2000 MHz => SA > 75 dB For 2000 MHz – 3000 MHz => SA > 65 dB Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.   Technical Details Model: CXT Cable type: RG-6 Standard: EN 50117-9-2 Euroclass: Dca Euroclass: Smoke Production s2 Euroclass: Flaming droplets d2 Euroclass: Acidity a1 Class: A Inner conductor Diameter mm 1 Inner conductor Material: Copper (Cu) Inner conductor Resistance Ohm/km < 23 Dielectric Diameter mm 4.5 Dielectric Material: Foam polyethylene (PEE) Dielectric Color: White RAL 9003 Overlapped foil: Aluminium Polyester Braid Material: Aluminium Braid dimensions: No. of carriers (Nc): 16 Braid Dimensions: No. of strands per carrier (Ns): 8 Braid Dimensions: strand diameter (Ø) mm 0.12 Braid Resistance Ohm/km < 31 Braid Coverage % 79 2nd foil: No 2nd foil glued to the dielectric: No Petrol-Jelly: No Anti-migrating film: No Outer sheath Diameter mm 6.5 Outer sheath Material: LSFH Minimum bending radius mm 32.5 Transfer impedance (5-30MHz) mΩ /m < 5 1GHz shielding dB > 85 Spark Test Vac 3000 Capacitance pF/m 54 Impedance Ω 75 Velocity ratio % 82 Operating temperature °C -25 … 70   Attenuation Atenuacion 5MHz dB/m 0.01 Atenuacion 47MHz dB/m 0.04 Atenuacion 54MHz dB/m 0.05 Atenuacion 90MHz dB/m 0.06 Atenuacion 200MHz dB/m 0.09 Atenuacion 500MHz dB/m 0.14 Atenuacion 698MHz dB/m 0.17 Atenuacion 800MHz dB/m 0.19 Atenuacion 862MHz dB/m 0.19 Atenuacion 950MHz dB/m 0.2 Atenuacion 1000MHz dB/m 0.21 Atenuacion 1220MHz dB/m 0.23 Atenuacion 1350MHz dB/m 0.25 Atenuacion 1750MHz dB/m 0.29 Atenuacion 2050MHz dB/m 0.32 Atenuacion 2150MHz dB/m 0.33 Atenuacion 2200MHz dB/m 0.35 Atenuacion 2300MHz dB/m 0.35 Atenuacion 2400MHz dB/m 0.35 Atenuacion 3000MHz dB/m 0.39 Return losses 5MHz dB 20 Return losses 47MHz dB 20 Return losses 54MHz dB 20 Return losses 90MHz dB 20 Return losses 200MHz dB 20 Return losses 500MHz dB 18 Return losses 698MHz dB 18 Return losses 800MHz dB 18 Return losses 862MHz dB 18 Return losses 950MHz dB 18 Return losses 1000MHz dB 18 Return losses 1220MHz dB 16 Return losses 1350MHz dB 16 Return losses 1750MHz dB 16 Return losses 2050MHz dB 15 Return losses 2150MHz dB 15 Return losses 2200MHz dB 15 Return losses 2300MHz dB 15 Return losses 2400MHz dB 15 Return losses 3000MHz dB 15 Physical data Net weight:40g Gross weight:40g Width:6mm Height:1,000mm Depth:6mm Main product weight:39g Reel250 m
